Glass washing machine wash building glass, curtain wall glasses

Glass washing machine for architectural glass, building glass and curtain wall glass

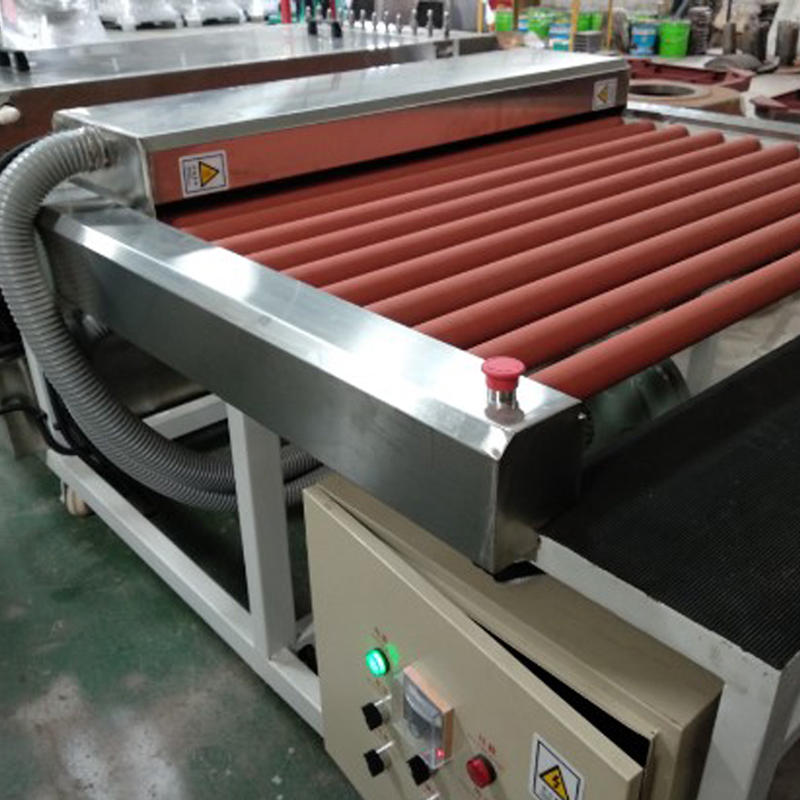

The special glass washing machine for architectural glass is suitable for clear and dry flat glass, and adopts a horizontal structure. The glass is placed on the conveying roller and passes through the inlet section, cleaning section, and drying section to reach the outlet section. The Glass washing machine is mainly composed of a conveying system, a lifting system, a brushing system, an air drying system, and an electronic control system. The conveying speed of the glass can be continuously variable according to the relevant process requirements. The water temperature can also be set according to the prior process requirements. The conveying system of the glass washing machine requires full helical gear transmission, which has stable and reliable performance.

Preparation before using the glass washing machine and drying machine

The glass washing machine will invade or generate some pollutants during the manufacturing, assembly, use and maintenance of the hydraulic system when flushing and filtering. It can also be used for regular maintenance and filtration of the working oil to improve cleanliness, reduce or avoid machine failures caused by pollution, thereby ensuring the high performance, high reliability and service life of the hydraulic system equipment.

There are a few points to note before using the glass washing and drying machine:

1. Check whether there is any air leakage or water leakage in the pipeline system. If so, notify the maintenance personnel to repair it.

2. Check whether the cleaning fluid is sufficient. If not, add cleaning fluid in time.

3. First start the test run, then run it idle for 2-3 minutes, check whether the transmission system (motor, coupling, reducer) and the conveyor belt are moving smoothly, and production can be carried out only after confirming that everything is normal.

4. Turn on the floating oil removal device (except without floating oil removal device) to start floating oil removal. At this time, the water pump is still on, the water surface is calm, and the oil removal effect is best. After the floating oil is basically removed, stop removing the oil. The oil removal is done during the lunch break.

Daily operation and maintance for glass cleaning machine

In the use of glass machinery, correct use and timely maintenance can improve the production efficiency of the product and extend the service life of the machinery. In the daily use of glass cleaning machine, several small details are worth noting:

First, the glass cleaning machine is controlled by buttons, so pay attention to turning on the blower first and then the heater. Turn off the heater first and then the blower. The operation sequence must not be changed. When the machine stops, the speed regulator should be reset to zero to avoid unnecessary trouble. During the operation of the sub-machine, do not touch the emergency stop button at will. It can only be used in an emergency.

In addition, pay attention to the glass discharge of the glass washing machine, because its glass discharge has a certain limit. The change of glass sheets thickness and the height of the wind knife should also be adjusted in time to avoid unnecessary damage accidents.

Finally, the water level of the glass washing machine should be controlled between 200-250mm, and water should be added at the low level, which cannot exceed this range.
