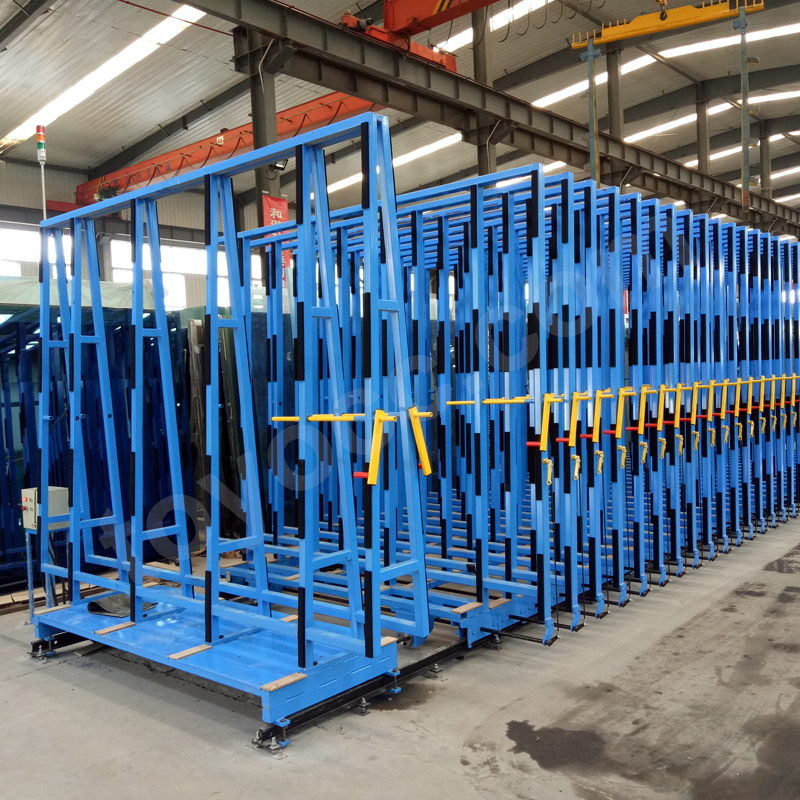

Electric Glass Storage rack system
Smoother and safer movement.

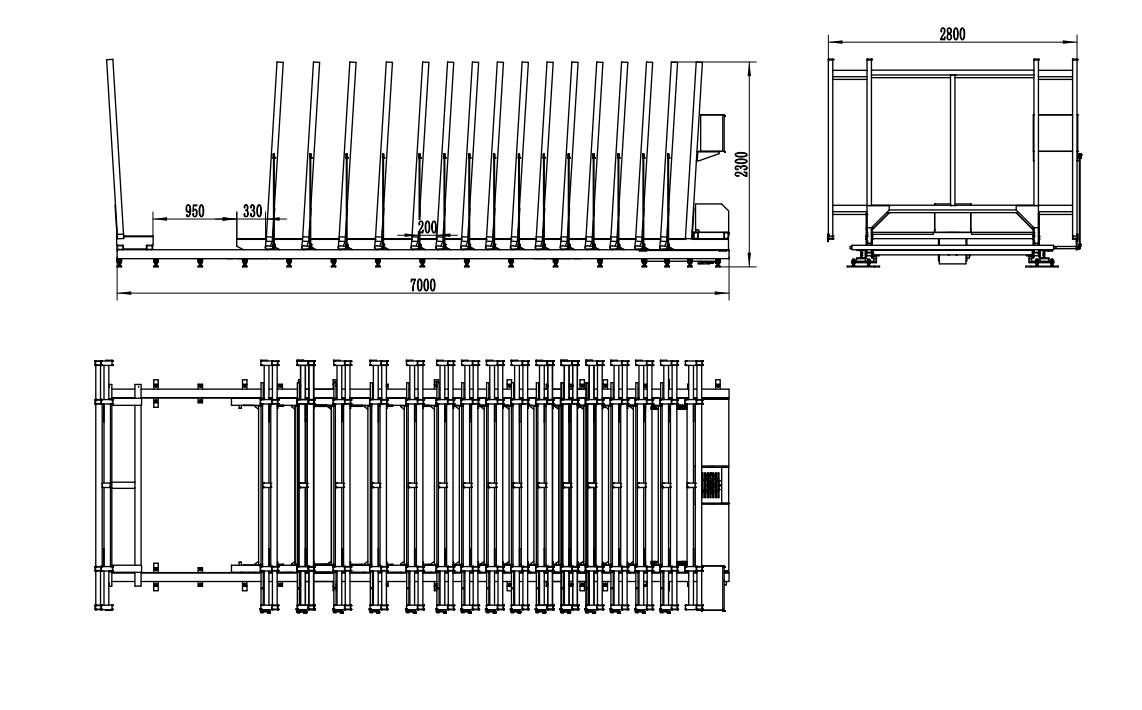

Storage system with lateral movement for regular size glass.
First rack and last rack are fixed, electric box on last rack.
PLC on control panel for rack number selection.
Motorized movement by No. 1 gear motor controlled by inverter on the 2nd rack.
Adjustable speed, acceleration and deceleration by inverter.
Loading up to 4,000kg for each rack.
Electric Glass storage system
Storage system with lateral movement for regular size glass.
First rack and last rack are fixed, electric box on last rack.
PLC on control panel for rack number selection.
Motorized movement by No. 1 gear motor controlled by inverter on the 2nd rack.
Adjustable speed, acceleration and deceleration by inverter.
Loading up to 4,000kg for each rack.
| Model | Racks Qty. | Max. loading per rack | Glass Dimensions | Storage slots thickness | Area Occupy Length |
| W30-1824-300 | 30 | 3,500KG | 1,830*2,440mm | 300mm | 13.7m |
| W30-2436-230 | 30 | 4,000KG | 24,40*3,660mm | 230mm | 11.6m |
