Drawer type Glass storage rack
Drawer type frame design, good security and stability.
Drawer type glass storage rack
Drawer type frame design, good security and stability.
The single glass racks are equipped with independent mobile wheels, which can be easily pushed and pulled.
| Model | Racks Qty. | Max. loading per rack | Glass dimensions | Storage slots thickness | Dimensions | Max. length after pulling |

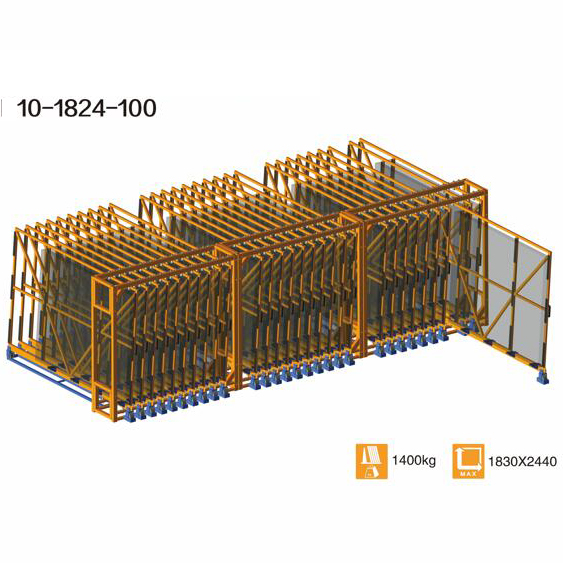

| D10-1824-100 | 10 | 1,100KG | 1830*2440mm | 100mm | 3,300*2,400*2,300mm | 5,900mm |
| D15-1824-50 | 15 | 550KG | 1830*2440mm | 50mm | 3,400*2,300*2,200mm | 5,900mm |

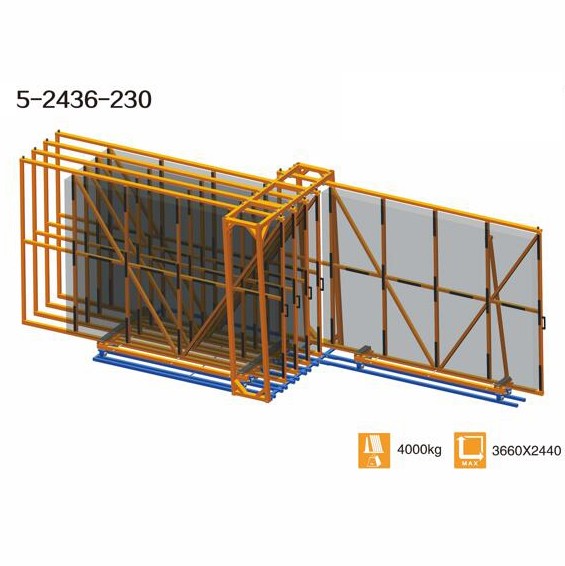

| D5-2436-230 | 5 | 4,000KG | 2440*3660mm | 230mm | 4,700*2,800*2,900mm | 8,300mm |
| D10-2436-100 | 10 | 2,000KG | 2440*3660mm | 100mm | 4,600*2,400*2,900mm | 8,250mm |
| D15-2436-50 | 15 | 1,000KG | 2440*3660mm | 50mm | 4,700*2,800*2,900mm | 8,400mm |
