GLASS CUTTING TABLE
The glass cutting table can realize the straight line and special-shaped cutting of glass, suitable for architecture, decoration, home appliances, mirror assembly, handicrafts and other glass industry processing.

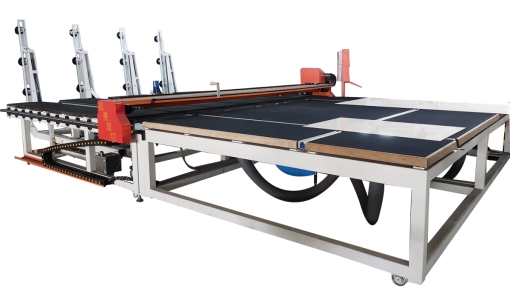

Glass cutting table
Description:
The automatic glass cutting table all-in-one machine is composed of the on-piece cutting machine and the air floating breaking platform, which integrates automatic cutting, automatic optimization typesetting, automatic labeling, automatic cutting, automatic transmission and air floating breaking platform, and the glass cutting process realizes automatic operation. The machine can realize the straight line and special-shaped cutting of glass, suitable for architecture, decoration, home appliances, mirror assembly, handicrafts and other glass industry processing.
Characteristic:
1) The function of one equipment can top 3 equipment (loading arms + cutting machine + breaking table).
2) Spend less money to do more things, small space, do big things.
3) Exquisite design, high efficiency and energy saving. Electricity saving 40%.
4) High-end configuration, with a low failure rate.
Parameters:
| Model | CNC-2420 | CNC-3628 |
| Glass Max. Cutting sizes | 2400*2000mm | 3600*2800mm |
| Cutting thicking | 3-19mm (air pressure control) | 3-19mm (air pressure control) |
| Cutting speed | 0-200M / min | 0-200M / min |
| Cutting acceleration | ≥8m/s² | ≥8m/s² |
| Cutting accuracy | ± 0.3 mm/s (with-cutting line size) | ± 0.3 mm/s (with-cutting line size) |
| Install the power | 15kw | 15kw |
| Compressed Air | 0.6-0.8Mpa Exent 0.6-1m3/min | 0.6-0.8Mpa Exent 0.6-1m3/min |
| Machine dimensions | 3300*2500*800mm | 4500*3300*900mm |
